FHIR Data Model

The Med-SEAL Suite uses HL7 FHIR R4 as its canonical data standard. All clinical data is stored in Medplum’s FHIR store and accessed through its REST API. This page explains the key resources, naming conventions, and read/write patterns used across the platform.

---

Key FHIR Resources

Resource	Used For
Patient	Patient demographics and identifiers
Practitioner	Clinician identity
Encounter	Clinical visits and interactions
Condition	Diagnoses and problem list entries
MedicationRequest	Prescriptions
MedicationAdministration	Dose confirmations (from app)
Observation	Vitals, lab results, biometric readings
Appointment	Scheduled visits
AllergyIntolerance	Documented allergies
Immunization	Vaccination records
Procedure	Procedures performed during encounters
Composition	Structured clinical documents (e.g. pre-visit briefs)
MeasureReport	Population and individual adherence metrics
QuestionnaireResponse	PRO (Patient-Reported Outcome) submissions

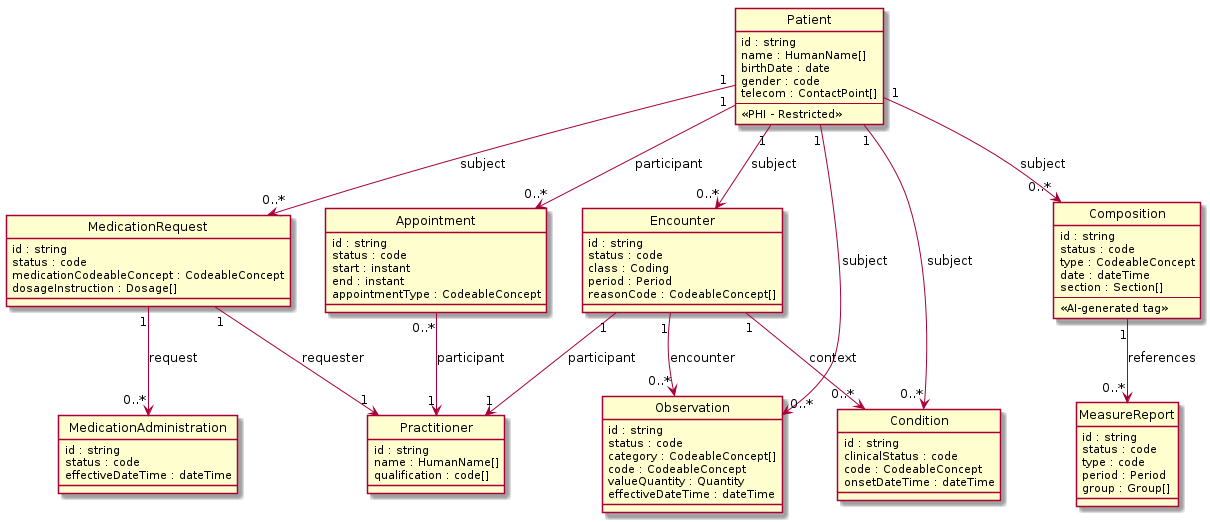

FHIR Domain Model (Class Diagram)

---

Reading FHIR Data

All reads go through the Medplum FHIR API. The base URL is configured via MEDPLUM_BASE_URL.

Using the Medplum TypeScript SDK

import { MedplumClient } from '@medplum/core';

const medplum = new MedplumClient({
  baseUrl: process.env.MEDPLUM_BASE_URL,
});

await medplum.startClientLogin(
  process.env.MEDPLUM_CLIENT_ID!,
  process.env.MEDPLUM_CLIENT_SECRET!
);

// Search for a patient by ID
const patient = await medplum.readResource('Patient', patientId);

// Search for active medications
const bundle = await medplum.search('MedicationRequest', {
  patient: `Patient/${patientId}`,
  status: 'active',
});

Raw FHIR REST

# Get a patient
GET /fhir/R4/Patient/{id}

# Search for observations (vitals) for a patient
GET /fhir/R4/Observation?patient=Patient/{id}&category=vital-signs

# Search for active medications
GET /fhir/R4/MedicationRequest?patient=Patient/{id}&status=active

All requests require a Bearer token obtained via the Medplum OAuth2 flow.

---

Writing FHIR Data

Creating a Resource

const observation = await medplum.createResource({
  resourceType: 'Observation',
  status: 'final',
  category: [
    {
      coding: [
        {
          system: 'http://terminology.hl7.org/CodeSystem/observation-category',
          code: 'vital-signs',
        },
      ],
    },
  ],
  code: {
    coding: [
      {
        system: 'http://loinc.org',
        code: '55284-4',  // Blood pressure
        display: 'Blood pressure systolic and diastolic',
      },
    ],
  },
  subject: { reference: `Patient/${patientId}` },
  effectiveDateTime: new Date().toISOString(),
  component: [
    {
      code: { coding: [{ system: 'http://loinc.org', code: '8480-6', display: 'Systolic BP' }] },
      valueQuantity: { value: 120, unit: 'mmHg', system: 'http://unitsofmeasure.org', code: 'mm[Hg]' },
    },
    {
      code: { coding: [{ system: 'http://loinc.org', code: '8462-4', display: 'Diastolic BP' }] },
      valueQuantity: { value: 80, unit: 'mmHg', system: 'http://unitsofmeasure.org', code: 'mm[Hg]' },
    },
  ],
});

Updating a Resource

await medplum.updateResource({
  ...existingResource,
  status: 'completed',
});

---

Coding Systems

Always use the correct terminology system for coded fields:

Concept	System	Example code
Vital sign types	http://loinc.org	8867-4 (Heart rate)
Diagnoses	http://snomed.info/sct or ICD-10	44054006 (Diabetes)
Medications	RXNORM or NZulm	860975 (Metformin 500mg)
Observation categories	FHIR category CS	vital-signs, laboratory
Units	UCUM (http://unitsofmeasure.org)	kg, mm[Hg], /min

---

Med-SEAL Conventions

• Patient reference format: always Patient/{id} (never bare ID strings).

• Timestamps: always ISO 8601 with timezone (2026-03-19T08:00:00+08:00).

• Dose confirmations: use MedicationAdministration with status: 'completed' and request pointing to the originating MedicationRequest.

• AI-generated content: tag Composition and Observation resources with the extension http://medseal.io/fhir/StructureDefinition/ai-generated: true so downstream systems can distinguish AI output from clinician-entered data.

---

FHIR Subscriptions

The AI Service subscribes to Medplum FHIR Subscriptions for real-time event processing:

Subscription	Trigger	Handler
New Observation (vital)	Patient logs a reading	Threshold check, nudge evaluation
New QuestionnaireResponse	PRO submission	Score computation, escalation
Updated Appointment	Status change	Pre-visit brief generation

Subscriptions are defined in apps/ai-service/src/subscriptions/.
