AI Service API Reference

The AI Service exposes a REST API on port 4003. All endpoints (except /health) require a valid session token issued by the SSO service, passed as Authorization: Bearer <token>.

---

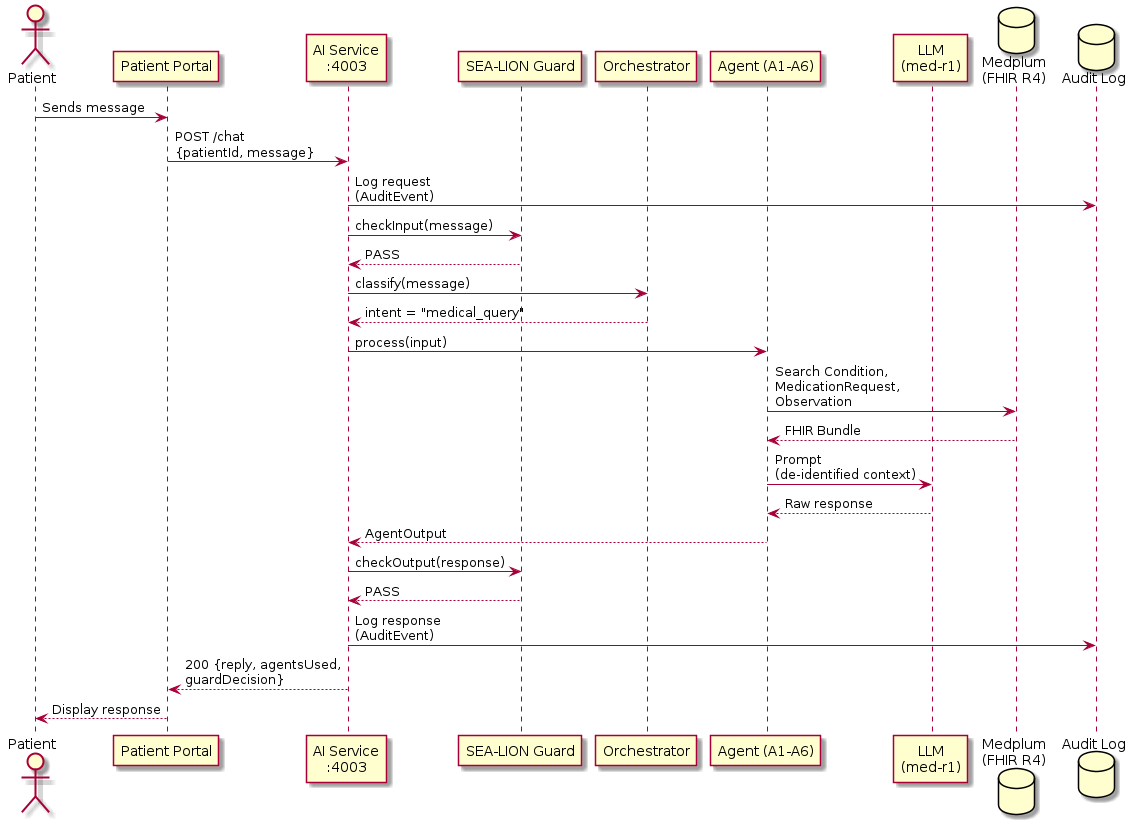

Request Lifecycle (Sequence Diagram)

The following diagram shows the end-to-end lifecycle of a clinical query through the AI Service, required for IT audit request traceability.

---

Base URL

http://localhost:4003

---

Authentication

Include the SSO token in all requests:

Authorization: Bearer <sso-token>

---

Health Check

GET /health

Returns service health. No authentication required.

Response 200

{ "status": "ok", "version": "1.0.0" }

---

Chat (Companion Agent A1)

POST /chat

Send a message to the AI Companion and receive a response.

Request body

{
  "patientId": "patient-123",
  "message": "What are the side effects of metformin?",
  "language": "en",
  "sessionId": "session-abc"
}

Field	Type	Required	Description
patientId	string	Yes	FHIR Patient ID
message	string	Yes	Patient’s message text
language	string	No	en, zh, ms, ta (default: en)
sessionId	string	No	Existing session ID for context continuity

Response 200

{
  "reply": "Metformin commonly causes nausea and diarrhoea, especially when first starting...",
  "sessionId": "session-abc",
  "agentsUsed": ["A1", "A2"],
  "guardDecision": "PASS",
  "language": "en"
}

---

Nudges (Nudge Agent A3)

GET /nudges/:patientId

Retrieve pending nudges for a patient.

Response 200

{
  "nudges": [
    {
      "id": "nudge-001",
      "type": "medication-reminder",
      "message": "Your morning metformin dose is due.",
      "severity": "info",
      "createdAt": "2026-03-19T08:00:00+08:00"
    }
  ]
}

POST /nudges/:patientId/dismiss

Dismiss a nudge after the patient has acknowledged it.

Request body

{ "nudgeId": "nudge-001" }

Response 200

{ "dismissed": true }

---

Pre-Visit Summary (Insight Agent A5)

POST /patients/:id/previsit-summary

Generate or retrieve a pre-visit summary for an appointment.

Request body

{
  "appointmentId": "appt-456",
  "lookbackDays": 30
}

Response 200

{
  "compositionId": "Composition/comp-789",
  "sections": [
    { "title": "Medication Adherence", "content": "..." },
    { "title": "Biometric Trends", "content": "..." },
    { "title": "Suggested Discussion Points", "content": "..." }
  ],
  "generatedAt": "2026-03-19T08:00:00+08:00"
}

---

Adherence Metrics (Measurement Agent A6)

GET /metrics/:patientId/adherence

Retrieve Proportion of Days Covered (PDC) for all active medications.

Response 200

{
  "patientId": "patient-123",
  "period": { "start": "2026-02-17", "end": "2026-03-19" },
  "medications": [
    { "name": "Metformin 500mg", "pdc": 0.85, "status": "on-track" },
    { "name": "Lisinopril 10mg", "pdc": 0.60, "status": "needs-attention" }
  ],
  "overallPdc": 0.72
}

---

Error Responses

Status	Code	Description
400	INVALID_REQUEST	Missing or malformed request body
401	UNAUTHORIZED	Missing or invalid token
404	NOT_FOUND	Patient or resource not found
422	GUARD_BLOCKED	Request blocked by SEA-LION Guard
500	INTERNAL_ERROR	Unexpected server error

Error envelope

{
  "error": {
    "code": "INVALID_REQUEST",
    "message": "patientId is required"
  }
}
