SSO & Authentication

Med-SEAL Suite includes a single sign-on (SSO) system that provides unified authentication across all services, with automatic user synchronisation to OpenEMR.

Role in Med-SEAL

The SSO system ensures that:

  • Users have one set of credentials across the platform

  • User accounts are automatically synced to OpenEMR

  • Department/facility assignments are managed centrally

  • An admin panel allows user management (CRUD + role assignment)

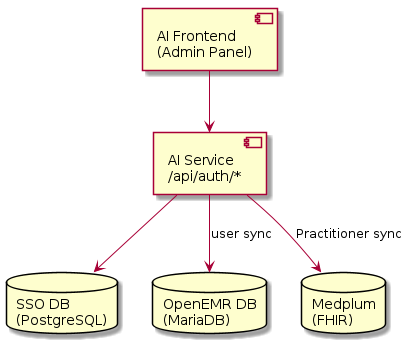

Architecture

@startuml skinparam componentStyle uml2 component "AI Frontend\n(Admin Panel)" as AIUI component "AI Service\n/api/auth/*" as AISvc database "SSO DB\n(PostgreSQL)" as SSODB database "OpenEMR DB\n(MariaDB)" as OEDB database "Medplum\n(FHIR)" as FHIR AIUI --> AISvc AISvc --> SSODB AISvc --> OEDB : user sync AISvc --> FHIR : Practitioner sync @enduml

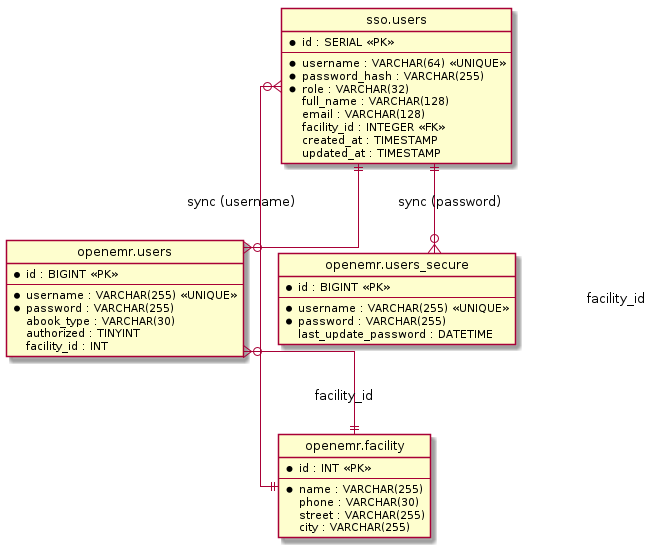

Entity-Relationship Diagram

@startuml skinparam linetype ortho hide circle entity "sso.users" as SSOUser { * id : SERIAL <<PK>> -- * username : VARCHAR(64) <<UNIQUE>> * password_hash : VARCHAR(255) * role : VARCHAR(32) full_name : VARCHAR(128) email : VARCHAR(128) facility_id : INTEGER <<FK>> created_at : TIMESTAMP updated_at : TIMESTAMP } entity "openemr.users" as OEUser { * id : BIGINT <<PK>> -- * username : VARCHAR(255) <<UNIQUE>> * password : VARCHAR(255) abook_type : VARCHAR(30) authorized : TINYINT facility_id : INT } entity "openemr.users_secure" as OESecure { * id : BIGINT <<PK>> -- * username : VARCHAR(255) <<UNIQUE>> * password : VARCHAR(255) last_update_password : DATETIME } entity "openemr.facility" as Facility { * id : INT <<PK>> -- * name : VARCHAR(255) phone : VARCHAR(30) street : VARCHAR(255) city : VARCHAR(255) } SSOUser ||--o{ OEUser : "sync (username)" SSOUser ||--o{ OESecure : "sync (password)" SSOUser }o--|| Facility : "facility_id" OEUser }o--|| Facility : "facility_id" @enduml

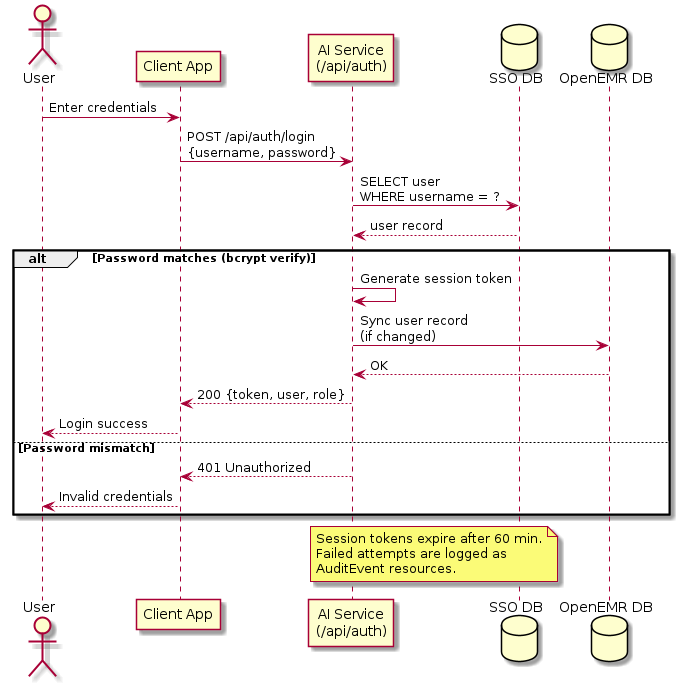

Authentication Flow (Sequence Diagram)

@startuml actor "User" as User participant "Client App" as Client participant "AI Service\n(/api/auth)" as Auth database "SSO DB" as SSODB database "OpenEMR DB" as OEDB User -> Client : Enter credentials Client -> Auth : POST /api/auth/login\n{username, password} Auth -> SSODB : SELECT user\nWHERE username = ? SSODB --> Auth : user record alt Password matches (bcrypt verify) Auth -> Auth : Generate session token Auth -> OEDB : Sync user record\n(if changed) OEDB --> Auth : OK Auth --> Client : 200 {token, user, role} Client --> User : Login success else Password mismatch Auth --> Client : 401 Unauthorized Client --> User : Invalid credentials end note over Auth, SSODB Session tokens expire after 60 min. Failed attempts are logged as AuditEvent resources. end note @enduml

SSO Database

The SSO system uses a dedicated PostgreSQL database:

Property

Value

Container

medseal-sso-db

Database

medseal_sso

User

sso

Port

5434

Schema

The core users table stores:

Column

Description

id

Auto-incrementing primary key

username

Unique login name

password_hash

bcrypt-hashed password

role

User role (admin, clinician, nurse, etc.)

full_name

Display name

email

Email address

facility_id

Department/facility assignment

created_at

Account creation timestamp

updated_at

Last modification timestamp

OpenEMR Sync

When a user is created or updated in the SSO system, their account is automatically synchronised to OpenEMR’s users_secure and users tables via direct MariaDB queries.

The sync maintains:

  • Username and password alignment

  • Role mapping (SSO role → OpenEMR user type)

  • Facility/department assignment

Sync Configuration

Environment variables for OpenEMR database connectivity:

OPENEMR_DB_HOST=openemr-db
OPENEMR_DB_PORT=3306
OPENEMR_DB_USER=openemr
OPENEMR_DB_PASS=openemr
OPENEMR_DB_NAME=openemr

API Endpoints

The AI Service exposes authentication endpoints:

Method

Endpoint

Description

POST

/api/auth/login

Authenticate user, return session

POST

/api/auth/register

Create new user account

GET

/api/auth/users

List all users (admin only)

PUT

/api/auth/users/:id

Update user details

DELETE

/api/auth/users/:id

Delete user account

GET

/api/facilities

List available departments/facilities

Admin Panel

The AI Frontend includes an admin page for user management:

  • Create, edit, and delete user accounts

  • Assign roles and departments

  • View user list with search and filter

  • Password reset

Security Notes

Warning

The default SSO configuration uses simple credentials suitable for development only. For production:

  • Use strong, unique passwords

  • Enable HTTPS on all endpoints

  • Implement rate limiting on auth endpoints

  • Add session expiry and refresh token rotation

  • Consider integrating with an external identity provider (OIDC/SAML)
